hammer mill

Hammer mill is a 'turn-key' equipment in pellet producing process. It is used to crush the raw material into proper size for pelletizing. Our hammer mills can process various of raw materials, including corn, corn stalk, peanut shell, grass, bean stalk, rice stalk, wheat, wood chips, etc.

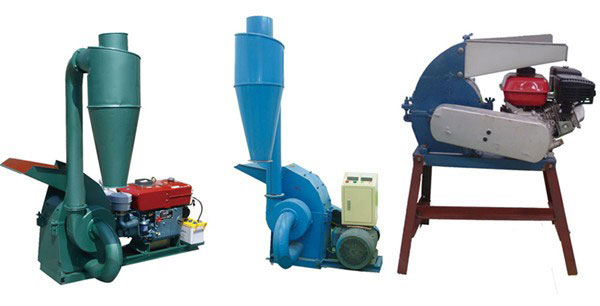

We have designed the TFS series hammer mill, it includes many models with two different driving forces: electric motor and diesel engine. This kind of hammer mill can crush large pieces of materials with diameters around 30mm into smaller pieces with diameters from 2mm to 5mm, which are perfect for almost all models of pellet mills on the market.

Technical Parameters of TFS Hammer Mills

Type and Motor	Power ( kw or hp)	Output (kg/h)	Weight (kg)	Package size (mm)
TFS158 (electric)	1.5kw	200-300	75/95	620*490*620
TFS420 (electric)	7.5kw	300-600	285/310	1200*1000*1220
TFS420-A (electric)	11kw	300-600	310/330	1200*1000*1220
TFS500 (electric)	11kw	600-800	420/440	2000*900*1700
TFS500-A (electric)	15kw	600-800	435/460	2000*900*1700
TFS420 (diesel)	15Hp	300-600	355/385	1400*1000*1220
TFS420-A (diesel)	22Hp	300-600	380/400	1400*1000*1220
TFS500 (diesel)	30Hp	600-800	400/420	2000*900*1700

Features of GEMCO Hammer Mills

Our hammer mills can do the crushing process and the selecting process at the same time and all granules can be gathered.
Every model of our hammer mills has loaded an air flow regulating valve, which can make them control the accuracy and avoid dust contamination while working.
Our hammer mills have cooling function, the temperature increasing degree of material is relatively low in the crushing process, which guarantees the smoothness of the granules
The structures of all our hammer mil models were designed in a compact way. This made them small size, low energy consumption, high efficiency and low noise.
They are well sealed, have outstanding self cooling function and because they are easy to load and unload it could be very convenient to switch their parts and repair them.
