electric pellet mill
Introduction of Electric Pellet Mills:
Electric pellet mills are pellet mills driven by electric motors. Generally, a pellet mill with an electric motor is smaller, quieter and easier to operate than the mills powered by other types of energies, which makes it popular with individual users. Our portable electric motor pellet mills can make pellets from sawdust, recycled paper, grass, leaves and other kinds of biomass wastes. Our electric pellet mills use three phase electricity, and provide high efficiency and stability even after a long period of use.
Features of Electric Pellet Mills:
-
Low energy consumption and high output efficiency.
-
Small size, easy to install and operate.
-
Movable mini pellet mill with electric motor, can work at anywhere you want. It is very convenient!
-
Durable parts, long service time ensured.
-
Can make pellets from a large scale of biomass wastes.
Detail Description of Our Electric Pellet Mills:
GEMCO electric motor pellet mills have many different models. There would surely be one that meets your requirement no matter how much power you want. These machines also possess direct shafts and enclosed cabinets to make it work regardless of the landforms.
GEMCO electric pellet machines also include two types: die-turned pellet mill and roller-turned pellet mill. These two types primarily differ in the working conditions of flat dies and rollers. Click
here to see the differences between them.
The die-turned pellet mills also include two models: model B and model C. The main difference between them is the design of their electric motors. The model C’s motor is sealed in the electric controlling cabinet while the model B’s is exposed.
|
Die-turned Electric Pellet Mill (model B & C) |
|
|
|

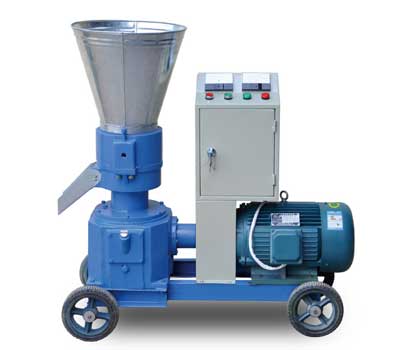

Electric Pellet Mill for Home Use ( model B ) |

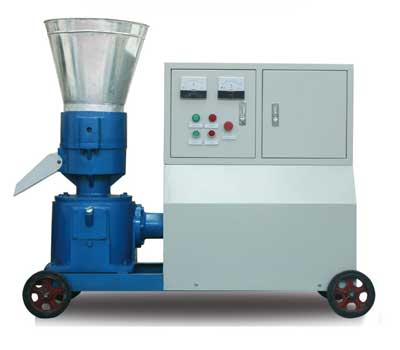

Electric Pellet Mill for Home Use ( model C ) |
Technical Data of Die-turned Electric Pellet Mills (B & C)
|
Type |
Power (kw) |
Output (kg/h) |
Weight (kg) |
Package size (mm) |
|
ZLSP-150B |
Three phase 5.5 |
50-100 |
95/110 |
800*450*700 |
|
ZLSP-200B |
Three phase 7.5 |
80-120 |
200/230 |
1050*480*930 |
|
ZLSP-230B |
Three phase 11 |
120-200 |
290/320 |
1180*540*1000 |
|
ZLSP-260B |
Three phase 15 |
160-250 |
320/360 |
1240*540*950 |
|
ZLSP-300B |
Three phase 22 |
250-400 |
350/380 |
1300*560*1100 |
|
Type |
Power (kw) |
Output (kg/h) |
Weight (kg) |
Package size (mm) |
|
ZLSP-150C |
Three phase 5.5 |
60-110 |
105/125 |
1000*480*780 |
|
ZLSP-200C |
Three phase 7.5 |
80-120 |
210/230 |
1050*550*830 |
|
ZLSP-230C |
Three phase 11 |
120-200 |
290/320 |
1200*560*950 |
|
ZLSP-260C |
Three phase 15 |
160-250 |
340/370 |
1240*580*1000 |
|
ZLSP-300C |
Three phase 22 |
250-400 |
425/465 |
1300*620*1100 |
Technical Data of Roller-turned Electric Pellet Mill
|
Type |
Power (kw) |
Output (kg/h) |
Weight (kg) |
Package size (mm) |
|
ZLSP-200B |
Three phase7.5 |
80-120 |
215/245 |
950*450*1050 |
|
ZLSP-300B |
Three phase 22 |
250-350 |
540/575 |
1350*750*1400 |
|
ZLSP-400B |
Three phase 30 |
350-450 |
770/810 |
1400*800*1450 |
