diesel pellet mill
Introduction of Diesel Pellt Mills:
A diesel pellet mill is a pelletizer driven by a diesel engine. GEMCO diesel pellet mills are flat die designed small pellet mills. They are designed and constructed elaborately and are made by high quality materials. The transmission shaft of a diesel pellet mill is supported by two tapered roller bearings which can withstand strong two-way axial force and radial force, this guarantees a safety structure.
Diesel pellet mills share similar functions with electric pellet mills, but it can work in more places. If you want a pellet mill which could work in the places where electricity is hard to access, like farm fields, then a diesel pellet mill will be a good choice.
Features of Diesel Pellet Mills:
-
Movable mini pellet mill, can work at anywhere you want. It is very convenient!
-
Small size and compact design, easy to operate.
-
Since it uses low price diesel oil as power source, it could be very cost effective!
-
Can process a large scale of materials, including sawdust, wood chips, straws, sunflower husks and stalks.
-
The large horsepower diesel engine is installed with 2 batteries, so it can be easily activated even in cold weather.
-
A clutch is loaded to make sure the machine can be quickly stopped under emergency circumstances.
Detail Description of Diesel Pellet Mills:
We produce many models of diesel pellet machines with different capacities and sizes. Our diesel pellet mills also include D-type models and R-type models, just as our electric pellet mills. Click
here to see the differences between these two models.
 |
 |
|
Diesel Pellet Mill(D-type) |
Diesel Pellet Mill(R-type) |

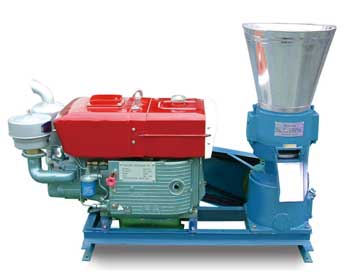

Technical Data of Die-turned Diesel Pellet Mill
|
Type |
Power (Hp) |
Output (kg/h) |
Weight (kg) |
Package size (mm) |
|
ZLSP-150A |
8 |
50-100 |
180/220 |
1000*500*750 |
|
ZLSP-200A |
15 |
80-120 |
210/240 |
1460*750*900 |
|
ZLSP-230A |
22 |
120-200 |
280/310 |
1560*850*1000 |
|
ZLSP-260A |
30 |
160-250 |
330/360 |
1200*500*1070 |
|
ZLSP-300A |
55 |
250-400 |
410/450 |
1220*600*1000 |

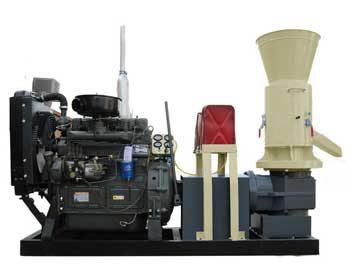

Technical Data of Roller-turned Diesel Pellet Mill
|
Type |
Power (Hp) |
Output (kg/h) |
Weight (kg) |
Package size (mm) |
|
ZLSP-200A |
15 |
80-120 |
320/350 |
1460*950*1100 |
|
ZLSP-300A |
36 |
250-350 |
850/890 |
1100*700*2480 |
|
ZLSP-400A |
55 |
350-450 |
1010/1050 |
1300*800*2600 |
