introduction of r-type and d-type pellet mills

Flat die pellet mills can be further divided into D-type(die-turned) pellet mills and R-type(roller-turned) pellet mills. These two types of pellet mills are quite different from some aspects and they both have their own advantages in pellet making. It is necessary to learn them first if you are going to buy a pellet mill.

Working Styles

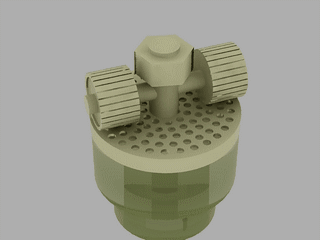

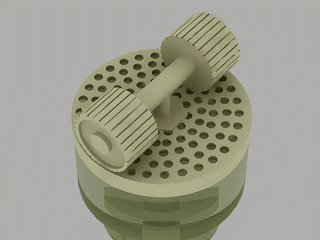

In the pellet making process, the rollers of the die-turned pellet mills are stationary and the flat dies rotate to grind the raw material powders. The powders are then be pressed into the small holes of the dies and become pellets. While the roller-turned pellet mills work in an opposite way, the flat dies are stationary during this process but the rollers rotate and press powders into the holes.

Raw Materials

Both D-type and R-type pellet mills can produce pellets from a large scale of raw materials. But because the roller driven system can provide more pressure, the R-type can also produce pellets from hard wood materials, while the D-type can not.

Pellet Products

The pellets produced by these two types are also different. Even use the same materials, the final products can still be easily varied. The surfaces of the pellets made by the roller-driven mills are smoother. These pellets also possess higher densities and higher combustion values. On the other hand, the pellets made by die-driven pellet machines are a little bit rough, and their combustion values are not that high, but still they are more efficient than common firewood and are suitable for home use.

Conclusion

Though the R-type machines have more advantages than the D-type ones, their prices are also relatively higher. D-type mills are suitable for pelletizing softwood and crop wastes such as rice husks, peanut shells, straws, stalks and so on. They have not only low prices but also large capacities. So if you are running a pellet factory and are planning to make medium to large scale pellets with premium quality and good looking, the R-type pellet machines could be your best choice. But if you are just looking for a pellet mill for home use, a D-type one would be more than enough to do the job.
